10t/D Used Tyre Recycling Machine Pyrolysis Waste Plastic Pyrolysis Machine Waste Rubber Pyrolysis Plant
Company Profile
Xinxiang Lefilter Filter Corp.,ltd Shangqiu Branch is a collection research and development,production,sales and after-sales service in one of the specialized,intergrated company. We're specialized in producing waste tyres pyrolysis machine, waste plastic pyrolysis plant,waste rubber pyrolysis equipment, oil sluge pyrolysis machine, Waste tyre Oil/plastic oil,waste motor oil distillation plant,and Municipal Solid Waste Sorting Machine.All of the machines aims to manage waste and recycle them to energy or other resource,which meet our mission.We have first-class sales team,professinal technical team,efficient production systems and have a perfect customer service system.
Following is our company Strength for reference:
1.10 Year's production experience.
2.24 hours online service.
3.Engineer Overseas Service Provided.
4.Production capacity 25 sets/ month,300 sets anually.
5.Exported and Installed in India,USA,Brazil,Russia,Turkey,Egypt,Nigeria,Thailand,Indonesia,Australia,England etc.
Product details:
1. Major parts :
feeding system
reactor with base and cover
smoke desulphurization tower
oil -gas separator
carbon black discharging system
carbon black storage tank
cooling system
water sealing
water-cooling conveyor
oil tank
dust removal system
waste gas recycle system
Equipment advantages :
A. Batch and semi-continuous type machines to be chosen.
B. Best Quality and Security: With CE, ISO and SGS certificates.
C. Environmental protection, no pollution, even no emission at all.
D. High oil output: 40%~55% according to Tyre kinds, 75~90% yield from different oil kinds.
E. Advanced technology: No matter in batch systems or semi-continuous systems
F. Perfect sales-after service:Technicians available for overseas maintenance and guidance.
G. Easy operation: During operation, two people is OK.
H. Low consumption of energy
I. No waste generated during operation, all things useful and can be sold or used.
3.Raw Materials:
| Pictures | Raw materials | Description |
 | Waste tires | The most popular materials for waste tires , final products can be fuel oil,steel wires and carbon black, average oil yield 40%-45%. |
 | Waste Plastics | Plastics can be PP/PE/PS/ABS,PP/PS 60%-70%,HDPE around 80%,ABS about 40%. plastic pyrolysis will generated a large scale of combustible gas,which will be recycled in the system.< |
 | Oil Sludge | Final products from oil sludge will be mainly slag and oil, yield depends on the materials, the main purpose is to realize zero pollution releasing. |
 | MSW | Mixed MSW needs to be sorted firstly, plastics separated from MSW can be processed, oil yield of mixed plastics will be 30-50%. |
 | Medical Waste | Medical waste needs to be disinfected by microwave before processing in pyrolysis system, oil yield will be 30-50%. |
 | Aluminized Paper | Aluminized Paper can be processed by pyrolysis system, oil yield depends on materials , averagely plastic including materials is 35%, aluminum around 20%. |
 | Waste Cables (Waste Rubber) | Oil yield of waste cables depend on the materials, PE cable can reach above70%, Rubber cables around 35%, metals (copper or aluminum) will be separated. |

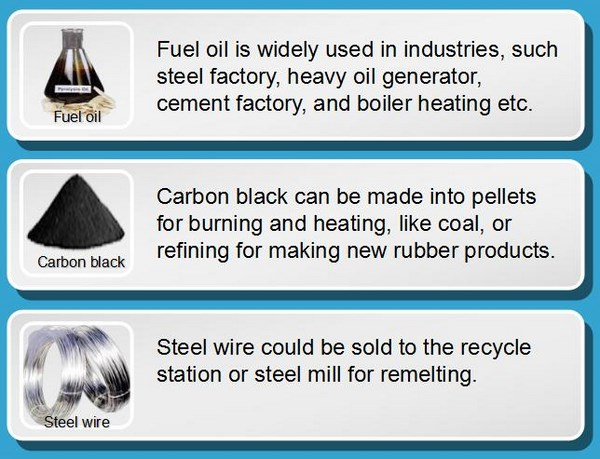

4.Final Products(Take waste tires as an example):
| Final Products | Yield | Application |
| Fuel Oil | 40%-45% | 1. Heating material:sell to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc. 2. Used for heavy oil generator for electricity generation. 3. Deep process it into diesel oil then can be used in cars,trucks, tractors, etc. |
| Carbon Black | 30%-35% | 1. Make it into pellet or briquette as heating material. 2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry. 3. Make it into plastic grains then sold to plastic industry. |
| Steel Wire | 12%-15% | 1. Sell it to iron and steel factory directly. 2. Sell it to steel distributors. |
| Flammable Gas | 8%-10% | 1.Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas. 2. Store it then supply the pyrolysis equipment heating,it's recycling. |
Pyrolysis plant's technical parameters:
| Items | Contents | ||||||
| Input-Raw Materials | Waste tire/rubber/plastic/Medical waste/MSW/Oil sludge/Aluminum plastic | ||||||
| Final products | Fuel oil, carbon black, steel wire, flammable gas | ||||||
| P/N | LES-2266 | LES-2666 | LES-2675 | LES-2880 | |||
| Capacity/24h | 5Ton/Batch | 10Ton/Batch | 12Ton/Batch | 15Ton/Batch | |||
| Oil production(T)/24h | 2.7-3.2 | 3.6-4 | 4.5-5 | 5.4-5.8 | |||
| Power | 5.5KW | 5.5KW | 7.5KW | 7.5KW | |||
| Cooling water(T/h) | 4 | 5 | 6 | 8 | |||
| Rotate speed(r/min) | 0.4 | ||||||
| Heating type | Direct heat | ||||||
| Cooling type | Water-cooled | ||||||
| Noise(dB) | <=85 | ||||||
| Operating | Intermittent | ||||||
| Driving mode | Internal gear | External gear | |||||
| Reactor material | Q345R/Q245R/310S+Boiler plate/Stainless steel | ||||||
| Structure | Horizontal rotation | ||||||
| Host weight(T) | 20 | 23 | 26 | 28 | |||
| Reactor size(mm) | Φ2200*6600 | Φ2600*6600 | Φ2600*7500 | Φ2800*8000 | |||
| Space needed | 200-300 square meters (Width:10m, Length:20m-30m) | ||||||
| Combustion value | 35-50m3 | ||||||
| Note | We supply customized plant,we need some basic information: What kind of raw material to recycle? Tires for car, truck, motorbike... Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludge industrial waste material... What capacity do you need to recycle per day? (Ton) What fuel do you use? Coal,gas,wood... | ||||||
Profit Analysis for your reference:
Note:A. This analysis is made with capacity of 10tonstire per day per batch.
B. Please modify relative prices according to your actual market conditions.
| NO. | ITEM | DETAILS |
| 1 | Daily Capacity | 10TPD |
| 2 | Raw Materials | Waste tire |
| 3 | Cost of tires | 10T*1000¥/T=10000¥ |
| 4 | Fuel Cost | 0.45T*1200¥/T=540¥ |
| 5 | Labor (Daily) | 3P*200¥/D/P=600¥ |
| 6 | Electricity & Water | 200¥ |
| 7 | Other | 100¥ |
| 8 | Total Cost | 11440.00¥ |
| 9 | Oil Income | 10T*40%*2500¥/T=10,000.00¥ |
| 10 | Steel Tire Income | 10T*15%*2600¥/MT=3,900.00¥ |
| 11 | Carbon Black Income | 10T*35%*300¥/T=1,050.00¥ |
| 12 | Gross Income | 14,950.00¥ |
| 13 | Daily Net Income | 14,950.00¥−11,440.00¥=3,510.00¥ |
| 14 | Monthly Net Income | 3,510/Day*25D=87,750.00¥ |
| 15 | Yearly Net Income | 87,750.00¥/M*11M=965,250.00¥ |
Certifications
CE ISO
Successful Cases：
Our service:
1. Quality warranty period: One year warranty for the main reactor
of pyrolysis machines and lifetime maintenance for complete set of machines.
2. Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
FAQ
1.What is our Qualification?
We are professional waste tyre and plastic pyrolysis plant manufacturer, with more than 10 years' and 20 years' boiler manufacture experience.
2.What kind of raw material to recycle?
We specialized in manufacturing pyrolysis plant for waste tyre/waste plastic/waste oil slugge, MSW etc
Tires for car, truck, motorbike...
Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludgeindustrial waste material...
3.How many countries we have exported?
Our product have been successfully exported and Installed in India,USA,Brazil,Russia,Turkey,Egypt,Nigeria,Thailand,Indonesia,Australia,England etc.
4.What is our Warranty Period?
The Warranty Period is ONE YEAR with lifelong service and 24 hours online service.
Quotation&Offer
We supply customized plant,we need some basic information. To choose the waste tire pyrolysis equipment and offer a proper quotationfor you ,kindly confirm following questions:
1.Raw material :Waste tyre or plastic ?
2.Production capacity ?(ton/day)
3. What's the burning material ?(Choose wood, coal, oil or natural gas as combustion materials,which one?)
4.What kind of pyrolysis equipment?(Batch or Semi-Continuous Type?)
5.What's your plan for this project ?
6.The final product will be used for?
7.What's the voltage in your country?
8.What's the environmental standard in your country?
9.Other special requirements.
If you want to know more information about the pyrolysis plant and other machinery, pls do not hesitate to contact us.Hope to have the chance to coorpation with you in the future.
